CORKSPORT 2010+ Mazdaspeed 3 FMIC

Get peak power gains of approx. 30 HP and 40 ft-lbs of torque with the CorkSport 2010+ Mazdaspeed 3 FMIC for Ram Air Kit. This innovative design utilizes the air ducting from the stock intercooler and replaces the stock intercooler location with a cold air box and adding a front mounted intercooler for optimal airflow.

The Mazdaspeed 3 FMIC for Ram Air kit has undergone extensive testing in the shop and on the street. In flow testing showed a 40% increase over the stock airbox and turbo inlet pipe.

The CorkSport Advantage:

24x6x3.5 inch intercooler core with cast end tanks for rapid heat dissipation: Supports up to 400hp for solid power gains with no permanent modifications. During testing, the Front Mount Intercooler saw a pressure drop of approximately 2psi and a maximum efficiency of 85%

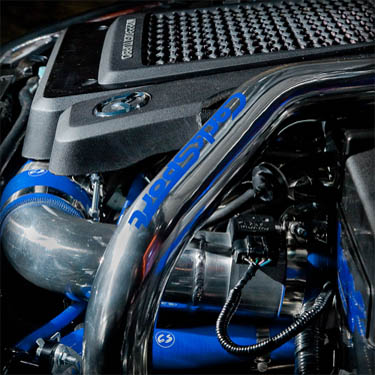

Mandrel bent and TIG welded aluminum intercooler piping keep the kit light. Available polished or powder-coated black
Bead rolled end piping to prevent connections blowing off under boost.
Bolt on kit with NO modifications required for installation: Install the kit without cutting up your Mazdaspeeed 3 chassis
Stainless steel t-bolt clamps ensure an airtight seal to prevent leaks and unmetered airflow into the engine for optimum performance and reliability.
Custom reinforced silicone connectors constructed with multi-layer nylon braid to provide more strength and power and a smooth internal transition for less turbulent air flow.
Maintain your factory engine cover to maintain a the stock look of your engine bay
Corksport Service and Support: Receive a 2 year warranty, full color installation instructions, all of the needed installation hardware, and knowledgeable telephone installation support.

12/23/2011, 12:32 PM

"Installed it about 6 months ago and it is still holding up very well, removed and installed other items testing the durability of some parts. Everything holds up really well. The box lining could be a little better, it is pealing a little in two areas. All and all outstanding product!"

– scott visser

09/01/2011, 08:12 PM

"The intake on this kit works very well in the 2nd Gen cars. If you didn't already have an intake and wanted a FMIC, I would recommend it before a SRI with FMIC. My car rocks- 286 WHP and 300 WTQ at17 PSI with a Cobb tune."

– Kaleb

03/27/2011, 09:35 AM

"I put it on my 2010 Speed 3 and love it. It boost so much faster and runs so much beter. I am so amazed with it and it looks so mean. It does take a while to install and the instructions are easier to follow on this sight then the ones that are given to you but worth the price you pay and look great all over!!"

– Jeremy Cook

New post

Precision is key when tuning a high-performance automobile. CorkSport designs every part with exacting tolerances, and uses the latest in computer-aided manufacturing techniques to make sure you get the highest quality and best performing part for your money.

Research and development is something we take very seriously here at CorkSport. Your parts are tested thoroughly during all stages of the development process. We do virtual testing on the computer using complex flow modeling technology, and then during the prototyping phase we rigorously test our products in real-world situations, on our own cars and select customer test vehicles. You can rest easy knowing that we have done a thorough job of testing each part we produce.
